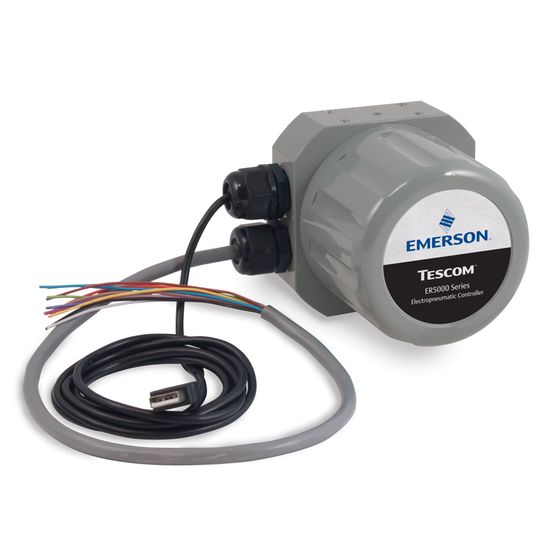

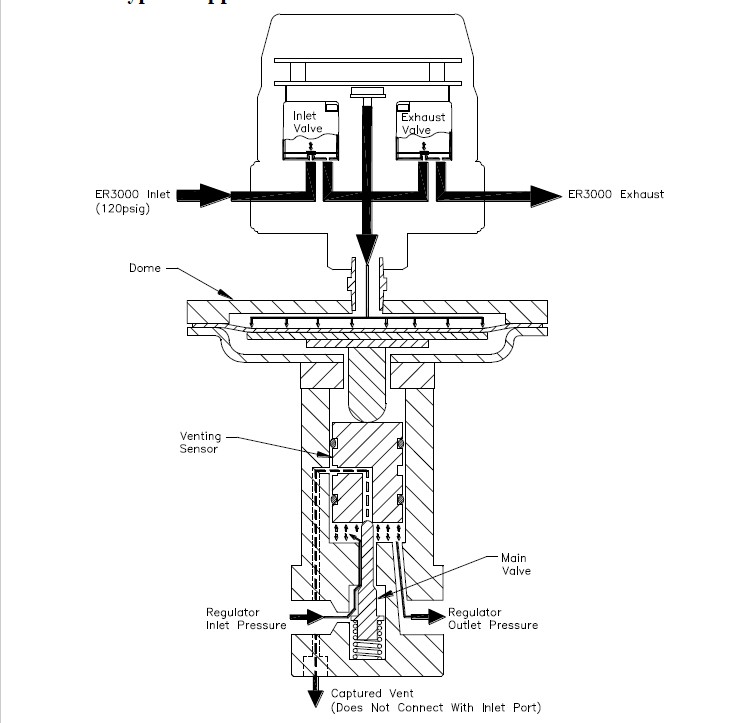

ER5000 Series Electropneumatic Actuator

The ER5000 Series is a microprocessor based PID (Proportional, Integral, Derivative) controller that brings precise algorithmic pressure control to a wide range of applications. It can be used as a standalone unit to control the pressure of inert gases or natural gas from 0 to 100 psig / 0 -6.9 bar, or be connected to any pneumatically actuated regulator. When used with regulators, the ER5000 provides pressure control of gases and liquids from vacuum to 30,000 psig / 2068 bar.

Power Requirement: 22 to 28.5 VDC, 340 mA maximum, 180 mA nominal

Supply Requirement: Media Type:
ER5000 – Clean, dry inert gas or instrument grade air
ERNG – Natural gas
Inlet Pressure:
Minimum: Outlet pressure + 1 psig / 0.07 bar
Maximum: 120 psig / 8.2 bar
Nominal: 110 psig / 7.5 bar

Housing Rating: Standard: NEMA 4X IP66 (aluminum and epoxy polyester paint)
Optional: Stainless Steel body available for Explosion proof models

Flow Stream Materials (Solenoids & Sensors): Solenoids: Nickel-plated Brass, FKM Seat and O-rings
Sensors: Glass, Ceramic, Silicon, RTV, Nickel

Flow Stream Materials (Manifold): Glass Filled PET (Explosion Proof only)

Flow Stream Materials (Tubing): Polyurethane

Flow Stream Materials (Plug): Brass

Flow Stream Materials (O-Rings): Silicone, Buna-N, FKM

Flow Stream Materials (Fittings): Stainless Steel

Port Size & Type: Gas Ports (Inlet, Exhaust & Gauge): 1/8 – 27 NPTF
Controlled Outlet Port: 1/2 inch SAE
Conduit Openings: Two, 1/2 inch NPTF

Operating Temperature Range: -22°F to 167°F / -30°C to 75°C (media require below 32°F)

Flow Capacity: Cv = 0.01

Weight: 3.1 lbs / 1.4 kg
